To make a stand, hinge and universal need, a marine steel plate mate of 30 ctms L x 2.5 cams A x 2.5 mm G, 2 screws 6 ctms long threaded 6'50, two nuts, 2 steel popcorn and a rectangle of 3 x 6 ctms ctms, L 2.5 ctms such a piece of rectangular tubes, the screw holding the case is of special thread, you have to look.
You must cut the deck and make the hinge, when you have done, you have to cut one side and make the two sides are not to be wider than the width of the plate, first you put the screw and you will soldáis head, so that squeezing the dove not around, the rectangle cut the piece down and make the bottom two holes on each leg, a soldáis him a nut, screw you take away the head and soldáis a check, follow the course of the photos and you will.
The U's have to adapt to depend on that stock or handle, wider or thin, depending on the rifle that may buy, measure the width and well before buying the U.
Well due to stability issues, I have rectified the hinge, making him a notch on both sides so it does not close and down to shoot, I've also cut the deck and is now shorter and removed another piece that i had to stop over I hope that the invention furule, weighs less. FORO BRICOSSUB
<º))))><
Para hacer un soporte, con bisagra y universal, necesitamos, una pletina inox marino mate, de 30 ctms L x 2'5 ctms A x 2'5 mm G, 2 tornillos de 6 ctms de largo con rosca de 6'50, dos tuercas, 2 palomitas y un rectángulo inox de 3 ctms x 6 ctms, L 2'5 ctms un trozo de esos tubos rectangulares.

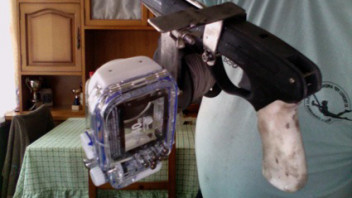

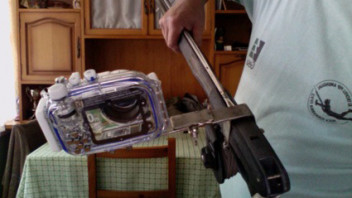

Tenéis que cortar la pletina y hacerle la bisagra, cuando la hayáis hecho, tenéis que cortarle un lado y hacer que se encuentren los dos lados sin que sea mas ancho que el ancho de la pletina, por una parte le ponéis el tornillo y le soldáis la cabeza, a fin que al apretar la palomita no de vueltas, el rectángulo cortarlo el trozo de abajo y en la parte de abajo hacerle dos agujeros en cada pata, en una le soldáis una tuerca, el tornillo le quitáis la cabeza y le soldáis una palomita, seguir el curso de las fotos y os saldrá, el tornillo que sujeta la carcasa es de rosca especial, tendréis que buscarlo.
La U la tenéis que adaptar para depende que culata o empuñadura, mas ancha o mas fina, dependiendo el fusil que compreis, medir antes el ancho y asi comprar la U.

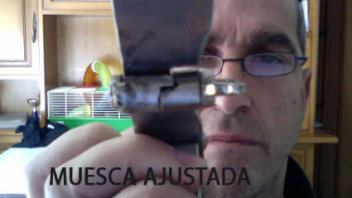

Bueno debido a los problemas de estabilidad, he rectificado la bisagra, haciendole una muesca a ambos lados asi no se cierra y se baja al disparar, también le he recortado la pletina, siendo ahora mas corta y quitado la otro trozo que tenia de tope encima, espero que el invento furule, pesa menos. FORO BRICOSSUB
